I/O Breakout Shield

Description

Easily connect external modules and devices to your Arduino compatible board using 12-way IDC cables.

Each of the 12-way headers provides a set of 8 I/O lines plus GND, VIN, IOREF, and RESET.

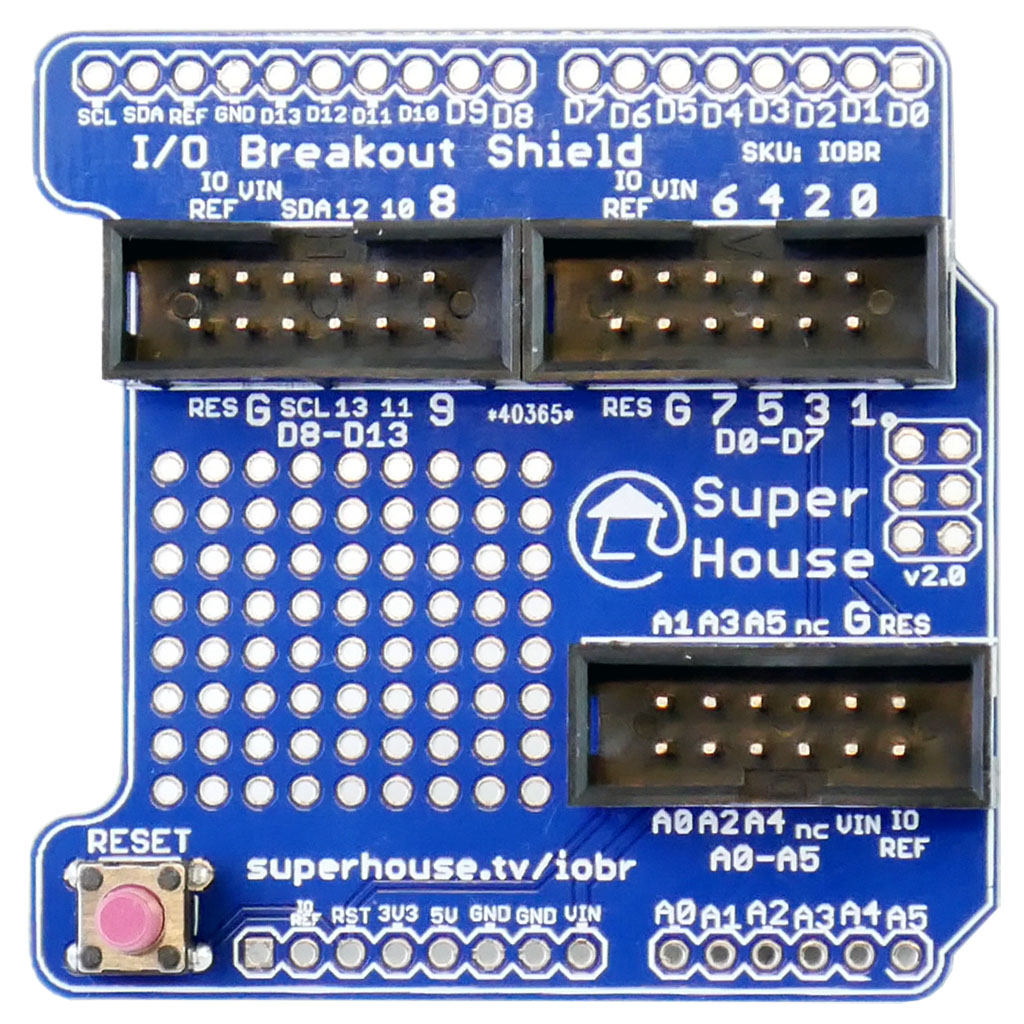

The shrouded header pins are connected to:

• A0-A5
• D0-D7
• D8-D13, SDA/SCL

Features

• 3 shrouded breakout headers.
• GND, power, and reset provided on each shrouded header.

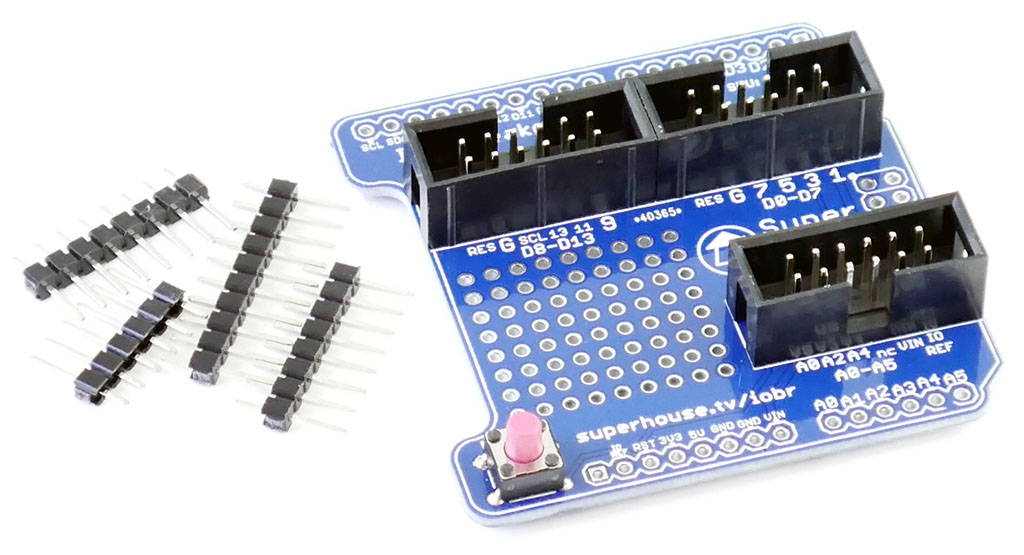

• Arduino pin headers supplied loose in case you want to use different headers.

Resources

• I/O breakout description and pinout guide
• Design files
