PiBreak Plus Raspberry Pi Prototyping Board

Description

Need to attach some electronic components or sensors to your Raspberry Pi? PiBreak Plus is a prototyping board for the Raspberry Pi. It provides labelled breakout pins for all GPIOs, a large prototyping area with solder pads, and power rails for easy power connection.

Compatible with all Raspberry Pi and equivalent boards with a 40-pin expansion header, including:

• Raspberry Pi model A+
• Raspberry Pi model B+
• Raspberry Pi model 2

Note: Not compatible with the older Raspberry Pi model A and model B that only have a 26-pin expansion header.

Features

• Gold-plated (ENIG) PCB for durability

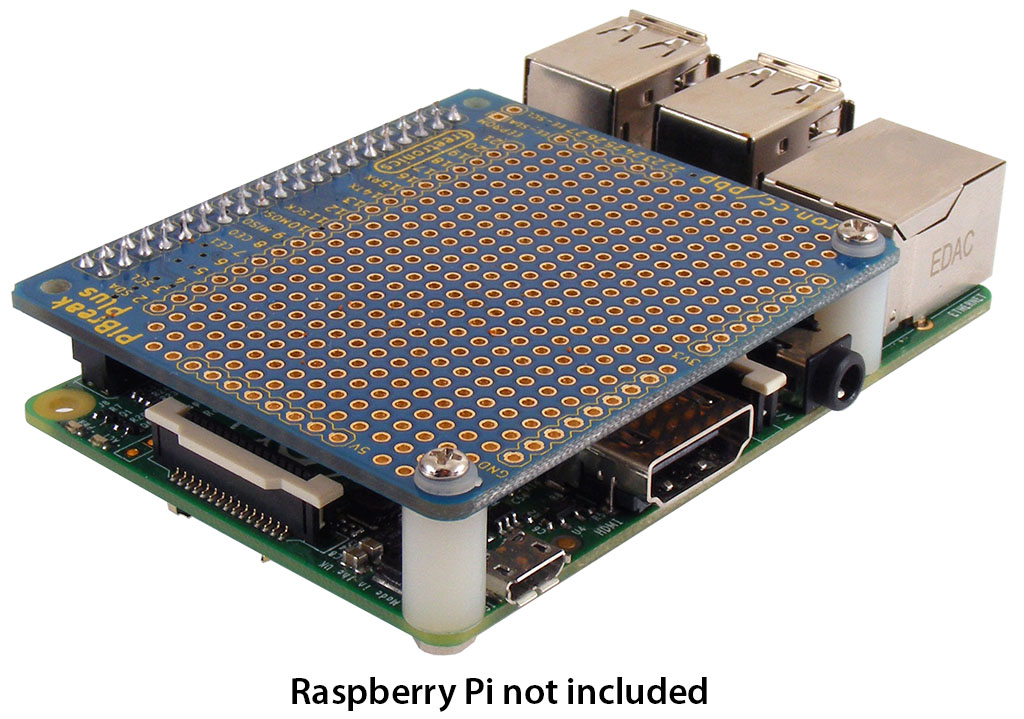

• Large prototyping area to place your own parts
• GND and 3.3V power rails
• Raspberry Pi I/O broken out next to the prototyping area
• Pinout markings on both the top and bottom

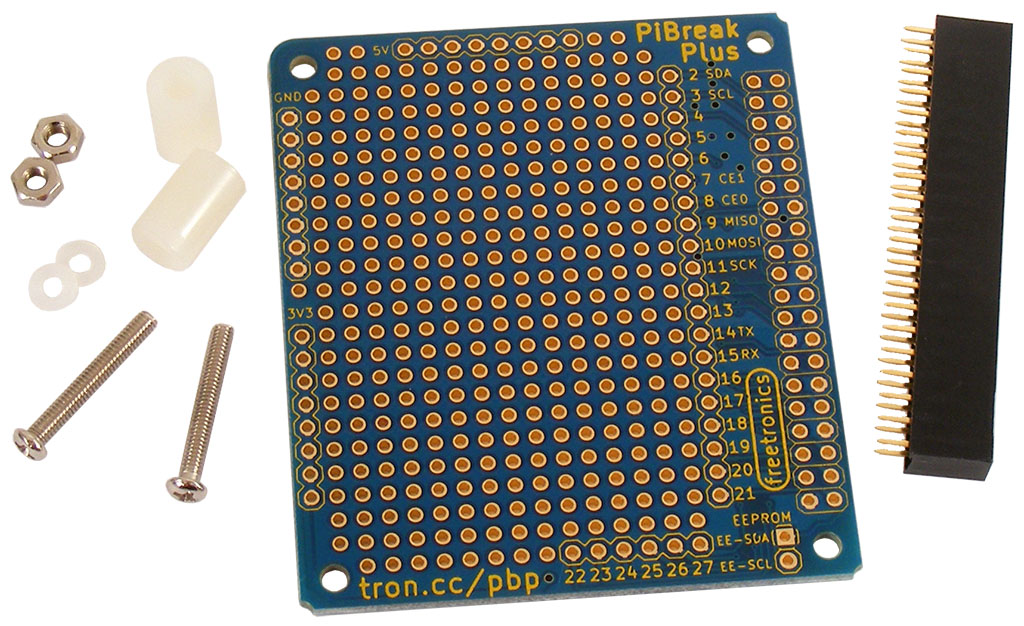

• Includes 2 nuts, bolts, spacers, and washers for firm mounting

Resources

• Schematic PDF
• Design files
