Prototyping Shield for WeMos D1 Mini

Posted on March 2nd, 2016

This tiny prototyping shield lets you add your own parts to the WeMos D1 Mini microcontroller board. It includes breakouts for the D1 Mini headers, and a grid of individual pads / holes for you to add your own parts.

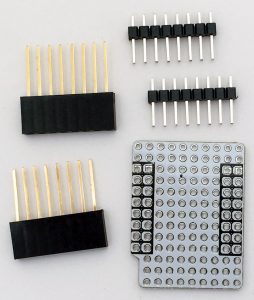

D1MPROTO-v1_0-with-parts

I prefer prototyping boards to have all the pads separate, because then I can link them in any direction using jumper wires, solder bridges, or component legs. I hate having to cut tracks on linked prototyping boards.

I already have plenty of the PCBs and headers, so these will be available as a product just as soon as I get around to putting them in bags.

Design files: github.com/SuperHouse/D1MPROTO
